Description

AOI for multi-layer PCB with min line/space down to 50 µm.

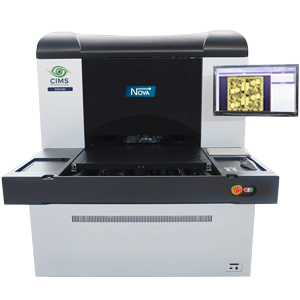

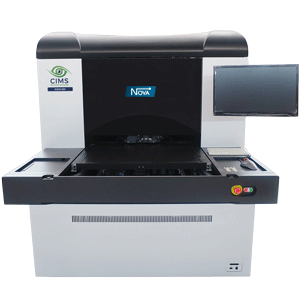

Nova 800, CIMS latest generation of AOI system, is designed to support high volume manufacturing of multi-layer PCB (mainstream MLB). It is optimized for 50+ µm line/space width technology.

The system’s state of the art optical technology Microlight™ provides optimal light coverage in order to be able to meet the most rigorous detection requirements. Optimized performance is achieved by combining superior image quality with customizable detection algorithms.

Equipped with the state-of-the-art image acquisition and advanced software capabilities, the Phoenix product family is renown for its exceptional detection achieved with lowest possible false calls rate.

Nova 800 is powered by Spark™ – an innovative cross-platform detection engine.

Highlights

  • Linear motors for smooth & silent motion
  • Robust mechanical structure
  • Strong suction vacuum table
  • High performance image processing firmware
  • Powerful processors to handle large data
  • Fast and intuitive setup for new jobs
Z

Options

  • CDB/CDBIC – defects classification and virtual defects mapping
  • VVS – virtual verification system
