AOI for inspection of FPC in roll-to-roll process with min line/space down to 15 µm.

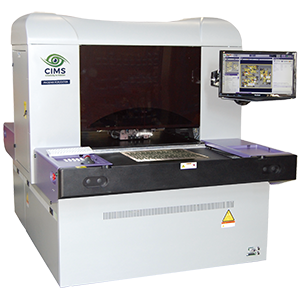

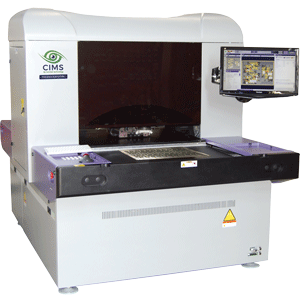

Phoenix R2R/Extra, CIMS latest generation of AOI system,is designed to support roll-to-roll (R2R) manufacturing of flex and rigid-flex PCB. It is capable to scan down to 15 µm line/space width technology.

The system’s state of the art optical technology Microlight™ provides optimal light coverage in order to be able to meet the most rigorous detection requirements. Optimized performance is achieved by combining superior image quality with customizable detection algorithms.

Equipped with the state-of-the-art image acquisition and advanced software capabilities, the Phoenix product family is renown for its exceptional detection achieved with lowest possible false calls rate.

Phoenix R2R/Extra is powered by Spark™ – an innovative cross-platform detection engine.

Highlights

  • Linear motors for smooth & silent motion
  • Robust mechanical structure
  • Automated vacuum table
  • High performance image processing firmware
  • Powerful processors to handle large data
  • Fast and intuitive setup for new jobs
  • Compatible with front/back AMHS automation or robot
Z

Options

  • +2DM metrology – panel dimensions measurement
  • +2CD metrology – 2D measurement of circuit elements
  • +3DH metrology – 3D measurements of circuit element’s height
  • +3DP metrology – 3D profiling of circuit element
  • LDI – laser drill inspection option
  • CDB/CDBIC – defects classification and virtual defects mapping
  • VVS – virtual verification system
